| Partition Type |
Paper honey comb |
Aluminum honey comb |
Fireproof rock wool |
| Thickness |
50mm |
50mm |
50mm/100mm |
| Maximum Length |
6000mm |
6000mm |
6000mm |
| Standard Length |
3000mm |
3000mm |
3000mm |
| Standard Width |
900mm/1200mm |
900mm/1200mm |
900mm/1200mm |
| Weight |
10 kg/m |
11 kg/m |
38 kg/m |
| Material |
Finishing |
0.5mmt Epoxy steel plate |
0.5mmt Epoxy steel plate |
0.5mmt Epoxy steel plate |
| 0.5mmtAntistatic steel plate |
0.5mmtAntistatic steel plate |
0.5mmtAntistatic steel plate |
| 0.5mmt Stainless steel plate |
0.5mmt Stainless steel plate |
0.5mmt Stainless steel plate |
| EPOXY Coating |
PE Thermosetting Epoxy 20~25μm |
PE Thermosetting Epoxy 20~25μm |
PE Thermosetting Epoxy 20~25μm |
| Priming |
EPOXY10~12μm |
EPOXY10~12μm |
EPOXY10~12μm |
| Filling Material |
Noncombustible paper comb |
Noncombustible aluminum comb |
Fireproof rock wool |

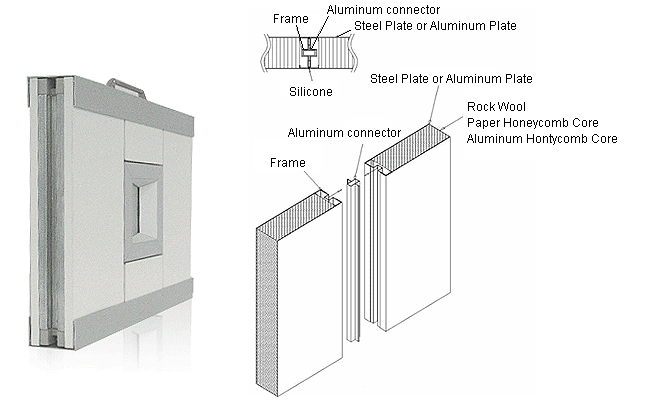

| Joint |
Protruding Frame |
Protruding Frame |
Protruding Frame |
| Calking |
Silica Gel |
Silica Gel |
Silica Gel |
| Sound Insulation |
30dB |
30dB |
30dB |
| Interior Function |
Pipe covered up before hand |
Pipe covered up before hand |
Pipe covered up before hand |
| Inspection Standard |
GB9978 0..37hr |
GB9978 0..33hr |
GB9978 1hr/4hr |
