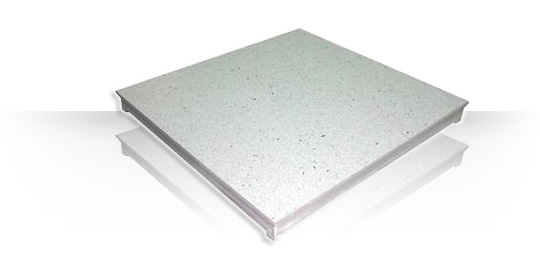

Aluminum Series│Solid



S/N
Item
V60AS300
V60AS500
V60AS700
1-1
Material of Floor Tile
Conductive Vinyl tile
1-2
ESD of Floor Surface
Conductivity: 104~106 Ω Anti-static: 5 x 106~5 x 108Ω
2-1
Material of Panel
Die-cast Aluminum
2-2
Uniform Load
800kgf/m2
Deflection≦1.0mm
1,250kgf/m2
Deflection≦1.0mm

1,700kgf/m2
Deflection≦1.0mm
2-3
Concentrated Load
300kgf/6.45cm2
Deflection ≦2.0mm
500kgf/6.45cm2
Deflection ≦2.0mm

700kgf/6.45cm2
Deflection ≦2.0mm
2-4
Ultimate Strength

600kgf/6.45cm2

1,000kgf/6.45cm2

1,400kgf/6.45cm2
2-5
Tolerance of Dimension
600+0.00mm/600-0.20mm
2-6
Tolerance of Thickness
± 0.10mm
2-7
Tolerance of Flatness
± 0.20mm
2-8
Tolerance of Diagonal
Max. 0.50mm
3-1
Treatment Option
Epoxy coating or Ni-Cr plating


S/N
Item
V60AS1000
V60AS1200
V60AS1500
1-1
 Material of Floor Tile
Conductive Vinyl tile
1-2 ESD of Floor Surface
Conductivity: 104~106 Ω Anti-static: 1 x 106~5 x 108Ω
2-1 Material of Panel
Die-cast Aluminum
2-2 Uniform Load
2,000kgf/m2
Deflection ≦1.0mm
2,200kgf/m2
Deflection ≦1.0mm

2,400kgf/m2
Deflection ≦1.0mm
2-3 Concentrated Load
1000kgf/6.45cm2
Deflection ≦2.0mm
1200kgf/6.45cm2
Deflection ≦2.0mm
1500kgf/6.45cm2
Deflection ≦2.0mm
2-4 Ultimate Strength

2,000kgf/6.45cm2

2,400kgf/6.45cm2

3,000kgf/6.45cm2
2-5 Tolerance of Dimension
600+0.00mm/600-0.20mm
2-6 Tolerance of Thickness
± 0.10mm
2-7 Tolerance of Flatness
± 0.20mm
2-8 Tolerance of Diagonal
Max. 0.50mm
3-1 Treatment Option
Epoxy coating or Ni-Cr plating


S/N
Item
V60AS1700
V60AS2000
V60AS2500
1-1
 Material of Floor Tile
Conductive Vinyl tile
1-2 ESD of Floor Surface
Conductivity: 104~106 Ω Anti-static: 5 x 106~5 x 108Ω
2-1 Material of Panel
Die-cast Aluminum
2-2 Uniform Load
2,600kgf/m2
Deflection≦1.0mm
2,800kgf/m2
Deflection≦1.0mm
3,000kgf/m2
Deflection≦1.0mm
2-3 Concentrated Load
1700kgf/6.45cm2
Deflection ≦2.0mm
2000kgf/6.45cm2
Deflection ≦2.0mm
2500kgf/6.45cm2
Deflection ≦2.0mm
2-4 Ultimate Strength

3,400kgf/6.45cm2

4,000kgf/6.45cm2

5,000kgf/6.45cm2
2-5 Tolerance of Dimension
600+0.00mm/600-0.20mm
2-6 Tolerance of Thickness
± 0.10mm
2-7 Tolerance of Flatness
± 0.20mm
2-8 Tolerance of Diagonal
Max. 0.50mm
3-1 Treatment Option
Epoxy coating or Ni-Cr plating


Note：Following Specification according to SJ standard only，If RAO / JIS / CISCA / CNS standard or other standards are required，Please contact us for detail information。
