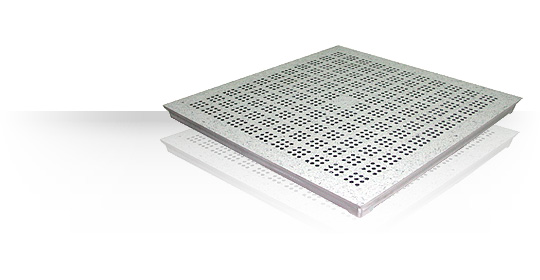

Aluminum Series│Perforated


S/N
Item
V60AP300
V60AP500
V60AP700
1-1
 Material of Floor Tile
Conductive Vinyl tile
1-2 ESD of Floor Surface

Conductivity: 104~106 Ω   Anti-static: 5 x 106~5 x 108Ω
2-1 Material of Panel
Die-cast Aluminum
2-2 Uniform Load
500kgf/m2
Deflection ≦1.0mm
1,000kgf/m2
Deflection ≦1.0mm
1,250kgf/m2
Deflection ≦1.0mm
2-3 Concentrated Load
250kgf/6.45cm2
Deflection ≦2.0mm
455kgf/6.45cm2
Deflection ≦2.0mm
600kgf/6.45cm2
Deflection ≦2.0mm
2-4 Ultimate Strength

500kgf/6.45cm2

900kgf/6.45cm2

1,200kgf/6.45cm2
2-5 Tolerance of Dimension
600+0.00mm/600-0.20mm
2-6 Tolerance of Thickness
± 0.10mm
2-7 Tolerance of Flatness
± 0.20mm
2-8 Tolerance of Diagonal
Max. 0.50mm
3-1

Opening Rate

17%
3-2 Treatment Option
Epoxy coating or Ni-Cr platin


S/N
Item
V60AP1000
V60AP1200
V60AP1500
1-1
 Material of Floor Tile

Conductive Vinyl tile
1-2 ESD of Floor Surface

Conductivity: 104~106 Ω   Anti-static: 1 x 106~5 x 108Ω
2-1 Material of Panel

Die-cast Aluminum
2-2 Uniform Load
1,350kgf/m2
Deflection ≦1.0mm
1,450kgf/m2
Deflection ≦1.0mm
1,350kgf/m2
Deflection ≦ 1.0mm
2-3 Concentrated Load
800kgf/6.45cm2
Deflection ≦2.0mm
1,000kgf/6.45cm2
Deflection ≦2.0mm
1,200kgf/6.45cm2
Deflection ≦2.0mm
2-4 Ultimate Strength

1,600kgf/6.45cm2

2,000kgf/6.45cm2

2,400kgf/6.45cm2
2-5 Tolerance of Dimension

600+0.00mm/600-0.20mm
2-6 Tolerance of Thickness

± 0.10mm
2-7 Tolerance of Flatness

± 0.20mm
2-8 Tolerance of Diagonal

Max. 0.50mm
3-1 Opening Rate
17%
3-2 Treatment Option

Epoxy coating or Ni-Cr plating


S/N
Item
V60AP1700
V60AP2000
V60AP2500
1-1
 Material of Floor Tile

Conductive Vinyl tile
1-2 ESD of Floor Surface

Conductivity: 104~106 Ω   Anti-static: 1 x 106~5 x 108Ω
2-1 Material of Panel

Die-cast Aluminum
2-2 Uniform Load
1,450kgf/m2
Deflection ≦ 1.0mm
1,550kgf/m2
Deflection ≦ 1.0mm
2,000kgf/m2
Deflection ≦ 1.0mm
2-3 Concentrated Load
1,400kgf/6.45cm2
Deflection ≦ 2.0mm
1,700kgf/6.45cm2
Deflection ≦ 2.0mm
2,200kgf/6.45cm2
Deflection ≦ 2.0mm
2-4 Ultimate Strength

2,800kgf/6.45cm2

3,400kgf/6.45cm2

4,400kgf/6.45cm2
2-5 Tolerance of Dimension

600+0.00mm/600-0.20mm
2-6 Tolerance of Thickness

± 0.10mm
2-7 Tolerance of Flatness

± 0.20mm
2-8 Tolerance of Diagonal

Max. 0.50mm
3-1 Opening Rate

17%

3-2 Treatment Option

Epoxy coating or Ni-Cr plating
