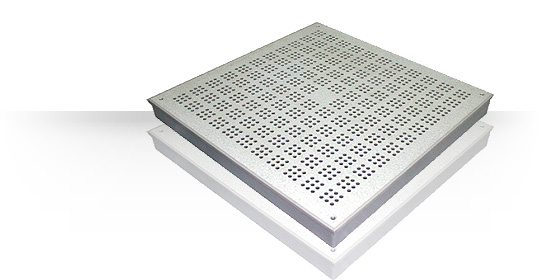

Magnesium Series│Perforated


S/N
Item
V60MP300
V60MP500
1-1
 Material of Floor Tile

Conductive Vinyl tile
1-2 ESD of Floor Surface

Conductivity: 104~106 Ω   Anti-static: 5 x 106~5 x 108Ω
2-1 Material of Panel

Die-cast Magnesium
2-2 Uniform Load

500kgf/m2.  Deflection ≦1.0mm

1,000kgf/m2.  Deflection ≦1.0mm
2-3 Concentrated Load

250kgf/6.45cm2.  Deflection ≦2.0mm

455kgf/6.45cm2.  Deflection ≦2.0mm
2-4 Ultimate Strength

500kgf/6.45cm2

900kgf/6.45cm2
2-5 Tolerance of Dimension

600+0.00mm/600-0.20mm
2-6 Tolerance of Thickness

± 0.10mm
2-7 Tolerance of Flatness

± 0.20mm
2-8 Tolerance of Diagonal

Max. 0.50mm
3-1 Treatment Option

Epoxy coating or Ni-Cr plating


S/N
Item
V60MP700
V60MP1000
V60MP1200
1-1
 Material of Floor Tile

Conductive Vinyl tile
1-2 ESD of Floor Surface

Conductivity: 104~106 Ω   Anti-static: 5 x 106~5 x 108Ω

Conductivity: 104~106 Ω   Anti-static: 1 x 106~5 x 108Ω
2-1 Material of Panel

Die-cast Magnesium
2-2 Uniform Load

1,250kgf/m2
Deflection ≦1.0mm

1,350kgf/m2
Deflection ≦1.0mm

1,450kgf/m2
Deflection ≦1.0mm
2-3 Concentrated Load

600kgf/6.45cm2
Deflection ≦2.0mm

800kgf/6.45cm2
Deflection ≦2.0mm

1,000kgf/6.45cm2
Deflection ≦2.0mm
2-4 Ultimate Strength

1,200kgf/6.45cm2

1,600kgf/6.45cm2

2,000kgf/6.45cm2
2-5 Tolerance of Dimension

600+0.00mm/600-0.20mm
2-6 Tolerance of Thickness

± 0.10mm
2-7 Tolerance of Flatness

± 0.20mm
2-8 Tolerance of Diagonal

Max. 0.50mm
3-1 Opening Rate

17%

3-2 Treatment Option

Epoxy coating or Ni-Cr plating
