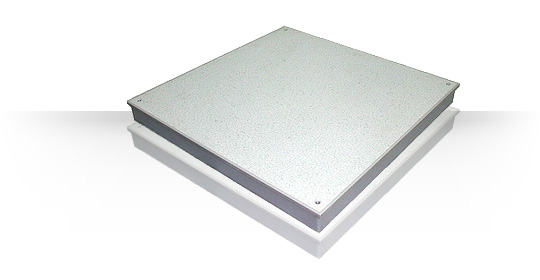

Magnesium Series│Solid


S/N
Item
V60MS300
V60MS500
V60MS700
1-1
 Material of Floor Tile
Conductive Vinyl tile
1-2 ESD of Floor Surface

Conductivity: 104~106 Ω   Anti-static: 5 x 106~5 x 108Ω
2-1 Material of Panel
Die-cast Magnesium
2-2 Uniform Load

800kgf/m2
Deflection≦1.0mm
1,250kgf/m2
Deflection≦1.0mm
1,700kgf/m2
Deflection≦1.0mm
2-3 Concentrated Load
300kgf/6.45cm2
Deflection ≦2.0mm
500kgf/6.45cm2
Deflection ≦2.0mm
700kgf/6.45cm2
Deflection ≦2.0mm
2-4 Ultimate Strength

600kgf/6.45cm2

1,000kgf/6.45cm2

1,400kgf/6.45cm2
2-5 Tolerance of Dimension

600+0.00mm/600-0.20mm
2-6 Tolerance of Thickness

± 0.10mm
2-7 Tolerance of Flatness

± 0.20mm
2-8 Tolerance of Diagonal

Max. 0.50mm
3-1 Treatment Option

Epoxy coating or Ni-Cr plating


S/N
Item
V60MS1000
V60MS1200
1-1
 Material of Floor Tile

Conductive Vinyl tile
1-2 ESD of Floor Surface

Conductivity: 104~106 Ω   Anti-static: 1 x 106~5 x 108Ω
2-1 Material of Panel

Die-cast Magnesium
2-2 Uniform Load

2,000kgf/m2
Deflection ≦1.0mm
2,200kgf/m2
Deflection ≦1.0mm
2-3 Concentrated Load

1000kgf/6.45cm2
Deflection ≦2.0mm

1200kgf/6.45cm2
Deflection ≦2.0mm
2-4 Ultimate Strength

2,000kgf/6.45cm2

2,400kgf/6.45cm2
2-5 Tolerance of Dimension

600+0.00mm/600-0.20mm
2-6 Tolerance of Thickness

± 0.10mm
2-7 Tolerance of Flatness

± 0.20mm
2-8 Tolerance of Diagonal

Max. 0.50mm
3-1 Treatment Option

Epoxy coating or Ni-Cr plating
