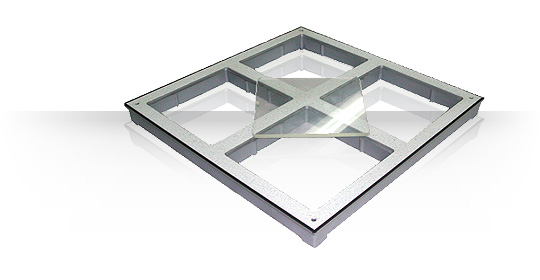

Magnesium Series│Window Panel


S/N
Item
V60MWP
1-1
 Material of Floor Tile

Conductive tile or Epoxy coating or NiCr plating
1-2 ESD of Floor Surface

Conductivity: 104~106 Ω   Anti-static: 1 x 106~5 x 108Ω
1-3 Material of Window

Acrylic Plastic or Glass 246x246mm (4 pieces)
2-1 Material of Panel

Die-cast Magnesium
2-2 Uniform Load

500kgf/m2.  Deflection ≦1.0mm
2-3 Concentrated Load

500kgf/6.45cm2.  Deflection ≦2.0mm
2-4 Ultimate Strength

600+0.00mm/600-0.20mm
2-5 Tolerance of Dimension

± 0.10mm
2-6 Tolerance of Thickness

± 0.20mm
2-7 Tolerance of Flatness

Max. 0.50mm
